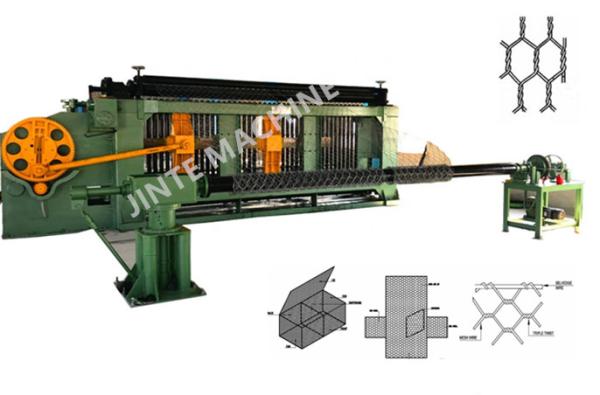

Fully Automatic Galvanized 16kw Gabion Mesh Machine Max.4.3m

Product Categories

Hexagonal Wire Mesh Machine [59]
Hexagonal Wire Netting Machine [45]
Gabion Mesh Machine [48]
Fully Automatic Chain Link Fence Machine [64]
Semi Automatic Chain Link Fencing Machine [36]
Wet Wire Drawing Machine [34]
Pulley Wire Drawing Machine [20]
Welded Wire Mesh Machine [44]
Wire Mesh Welding Machine [27]
Brick Force Wire Making Machine [13]
Wire Straightening And Cutting Machine [6]
Grassland Fence Machine [13]
Barbed Wire Making Machine [13]
Razor Blade Wire Making Machine [8]
CNC Wire Bending Machine [4]

Dingzhou Jinte wire mesh equipment Co., Ltd

Contact Now

Fully Automatic Galvanized 16kw Gabion Mesh Machine Max.4.3m

Name: Fully Automatic Galvanized 16kw Gabion Mesh Machine Max43m
Brand: JINTE
Price: 7000 USD

China Fully Automatic Galvanized 16kw Gabion Mesh Machine Max.4.3m wholesale

Brand Name : JINTE

Model Number : JT-G

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : USD7000-15000 / SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10sets/month

Delivery Time : 45days

Packaging Details : Packed in container with fixed iron rope and wooden stick. Necessarily, the machine will also be paint oil and plastic film. Train transport or sea way are both ok.

Name : Gabion machine

Wire diameter : 1.5-2.8

Mesh width : 2.3-3.8m

Power : 16kw

After-sales service provided : commissioning and training

Type : Fully Automatic

Contact Now

Automatic Galvanized Gabion Mesh Weaving Machine Max.4.3m

Heavy duty hexagonal wire gabion mesh making machine

Gabion mesh machine is also called heavy duty hexagonal wire mesh machine or gabion box machine, which is to produce the hexagonal wire mesh for reinforcement stone box use to protect and support the seawall,hillsides,road and bridge,reservoirs and other civil engineering.

Our machine has several models for different sizes of meshes and the maximum netting width is up to 4500mm. We can accept any special orders from clients.

Fully Automatic Galvanized 16kw Gabion Mesh Machine Max.4.3m

Usage:

1. )It is widely used in petroleum, construction, farming, chemical industry, heating pipes and other pipes parcel wire mesh.

2. )It can be used to make stone wire mesh cages, which are widely used to protect and support the seawall, hillsides, road and bridge

Technical Parameter

Model	Mesh size	Width	Wire diameter	Spindle Speed	Twist	Power	Theoretic output
Model	(mm)	(mm)	(mm)	(r/min)	(r )	(kw)	(m/h)
JT-80	60X80	2300 3300 4300	1.6-3.2	25	3	11 15 22	165
JT-100	80X100		1.6-4.0		3		195
JT-120	100X120		1.6-4.0		3		225
JT-150	120X150		1.6-4.2	20	3		255

Machine production line:

Standard machine
Main machine	1 Set
Wire tension device	1 Set
Netting winging machine	1 Set
Spiral Coiling Machine	1 Set
Wire pay-off with frame	1 Set

Horizontal type gabion wire mesh machine

Fully Automatic Galvanized 16kw Gabion Mesh Machine Max.4.3m

Specification:

Machine type	Straight twisted type 3 twists
Mesh size	60x80mm 80x100mm 100x120mm
Wire diameter	1.0-2.8mm
Mesh width	1-4.0M
Capacity	80-150m/h
Motor power	7.5kw
Outsize	365019001300mm
Voltage	380v,3phase,50hz
Weight	5.5-7.5 tons

Packaging & Shipping

Fully Automatic Galvanized 16kw Gabion Mesh Machine Max.4.3m
