Double Twist Hexagonal Mesh Machine Gabion Wire Netting Machine fence machine
Hexagonal Wire Mesh Machine - Characteristics
1.Based on the principle of straight and reverse twisted method , it is unnecessary
to make wire spring form to work , so the production increased a lot.
2.The hexagonal mesh can be widely used in fences of farmland and grazing land,
reinforced ribs of building walls and other usages.
3.The machine have adopted automatic stop system, when meet broken wires or
broken mesh it will stop automatically ,so only need 1 or 2 people can
handle this machine successfully
Hexagonal Wire Mesh Machine - Advantage:
1.PLC control and touch screen.More technical parameters can be set and adjusted on the touch screen.
Very convenient for workers to operate.
2.More accurate,Less Wire and mesh broken.Once wire or mesh broken,alarm will reflect and machine will stop automatically.
3.Lubricating system makes the machine to work more easily.
4.Speed more fast and production capacity imporved more.
Hexagonal Wire Mesh Machine -Technical parameters
| Model | Rated Size of Cell (mm) | Max Net Breadth (mm) | Max Thread Diameter (mm) | Theoretical productivity | Dimensions (LXWXH)mm | Weight (T ) |
| Mesh/min | M/h |
| ZJ1/2 | 16 | 3300 | 0.4-0.65 | 60-65 | 60-70 | 4500x2200x1450 | 4.6 |
| ZJ3/4 | 20 | 3300 | 0.45-0.7 | 60-65 | 70-80 | 4500x2200x1450 | 4.6 |
| ZJ1 | 28 | 3300 | 0.45-1.1 | 55-60 | 80-90 | 4500x2200x1450 | 4.6 |
| ZJ1.2 | 32 | 3300 | 0.45-1.2 | 55-60 | 90-100 | 4500x2200x1450 | 4.6 |
| ZJ1.5 | 40 | 3300 | 0.5-1.5 | 50-55 | 110-120 | 4500x2200x1450 | 4.6 |
If you’re interested in purchasing this machine for your factory, contact me today.
Our specialized team also offers engineering, consulting, and technical services and training to your employees.

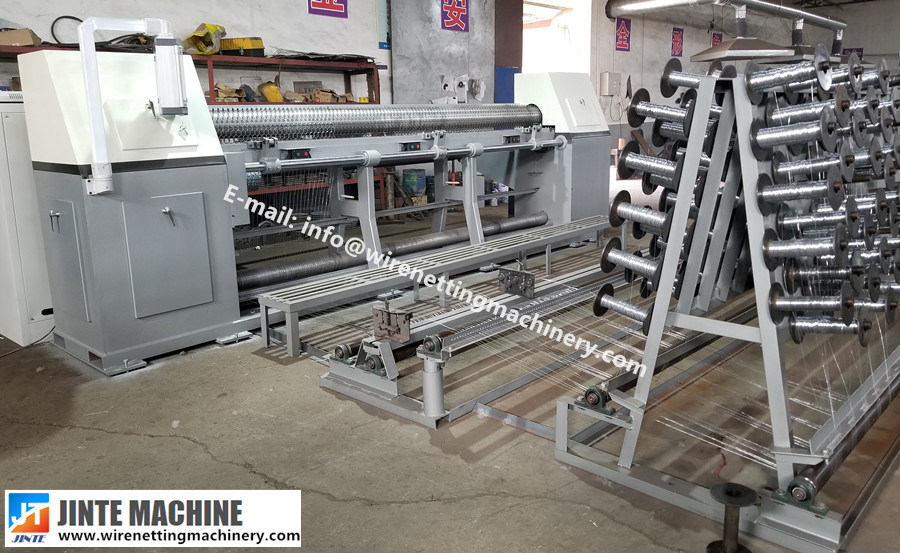

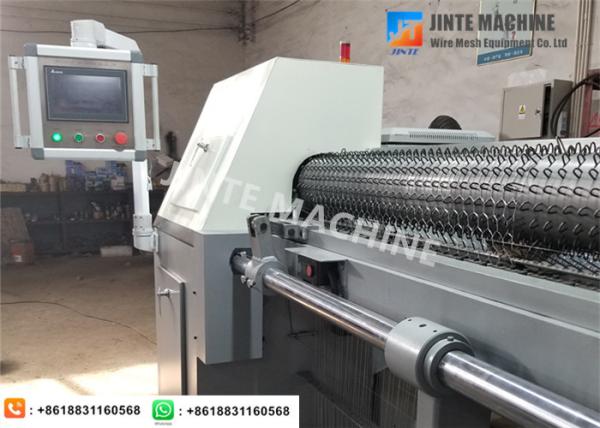

Hexagonal Wire Mesh Machine-Detailed Images
Hexagonal Wire Mesh Machine -Packing & Delivery
Hexagonal Wire Mesh Machine -GUARANTEE
1. Warranty period: Except the wearing parts, 24 months guarantee for machine and 12 months guarantee for electric appliance after shipment. During guarantee time, if the parts are broken caused by the product problem, seller will offer the parts by free,and we will provide the technical support for the whole life.
2. Breakage problem: If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
PLC control straight and reverse hexagonal wire mesh machine
Raw material: Galvanized steel wire,low carbon steel wire,stainless steel wire,etc.
ABOUT AFTER SALES SERVICE:
1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3. Technician: Normally need one or two technician.
4. Training time: one week (contains the time of installation and adjustment)
5. It is in same condition if the buyer need the seller to send the interpreter.
